A dedicated diamond core drill machine is a single-speed or two-speed motor with a ½" BSP chuck, a water feed connection, and a safety clutch that disengages when the bit binds. It runs at 300–900 RPM — far lower than a standard rotary hammer — and produces high torque at low speed. That torque is what cuts through concrete and masonry without shattering it.

UK tradespeople often ask whether their SDS hammer drill will handle diamond core bits. The short answer: for dry bits up to 52mm in brick on rotation-only mode, an SDS Max can manage. For anything above 65mm — especially in concrete — a dedicated machine is the only safe choice. The torque reaction on a 107mm bit in a wall stud can violently rotate a standard drill, causing wrist injuries. See the SDS Plus vs SDS Max adaptor guide for the exact limits.

What to Look For in a Core Drill Machine

• Motor power: 1000W minimum for cores up to 82mm. 1500W+ for 107mm and above in concrete or engineering brick.
• Safety clutch: Non-negotiable. A clutch disengages the motor when the bit stalls, preventing violent torque kick.
• Chuck thread: ½" BSP male thread (the UK standard). Confirms compatibility with all standard diamond core bits.
• Water connection: For wet diamond coring, the machine needs either an internal water feed system or a dust/water shroud connection point.
• Two-speed gearbox: Allows a slower speed for larger diameter bits and faster speed for smaller bits, extending bit life.
• Handle configuration: D-handle for single-operator use, or a dedicated drilling stand/rig for precision vertical and horizontal cores.

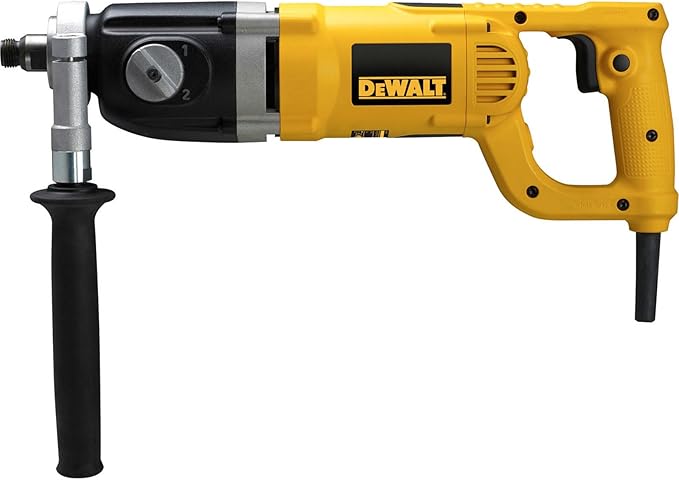

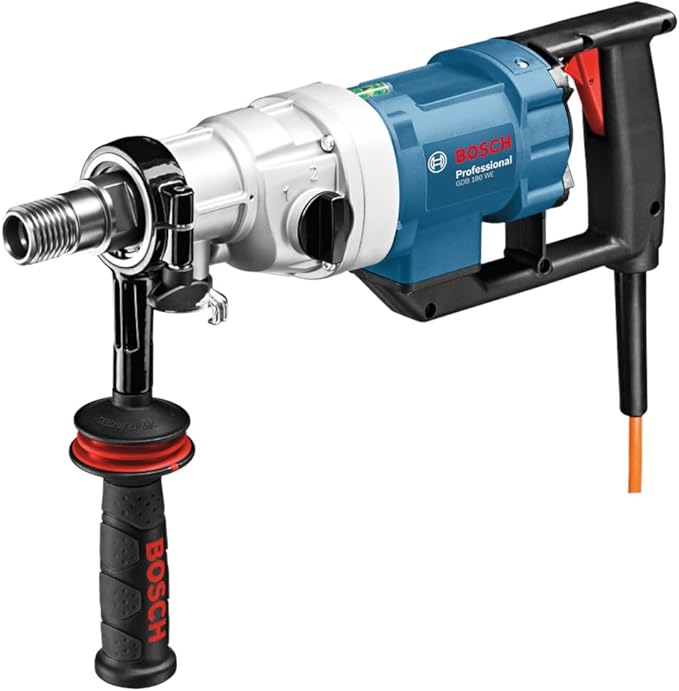

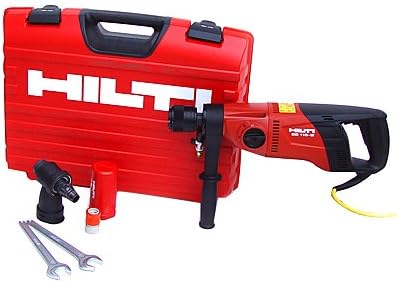

Core Drill Machine Comparison – UK Trade 2025

When to Hire vs Buy a Core Drill Machine

For occasional use — installing a boiler, fitting an extractor fan, or running a single cable entry — hire at £20–£40 per day is the cost-effective choice. UK hire shops stock dedicated core drill machines and often rent core bits by size as well. The hire vs buy cost guide covers the break-even calculation in detail.

For trade professionals drilling 10 or more holes per month — plumbers installing boilers, electricians running EV charger cables, or HVAC engineers fitting duct penetrations — owning a machine from £249 pays back quickly in time saved and bit compatibility.

Choosing Between Dedicated Machine and SDS Adaptor

If your core drilling is infrequent and limited to 38–52mm holes in standard brick and block, an SDS Max adaptor connected to a 1000W+ rotary hammer on rotation-only mode handles the job. The SDS adaptor guide covers compatible bit sizes and torque limits. Above 65mm diameter — or any coring in dense concrete — move to a dedicated machine for control and safety.
